Huck Schmiernippel

Huck Schmiernippel – Qualität Made in Germany

Seit 1964 fertigt das Unternehmen Huck nun in dritter Generation Schmiernippel für deutsche und internationale Konzerne sowie mittelständische Unternehmen aus der Maschinenbau- und Wälzlagerindustrie genau wie an viele Großhändler für Schmier- und Befestigungstechnik.

Unser Produktportfolio umfasst dabei

  • Trichterschmiernippel nach DIN 3405 mit Gewinde oder Einschlagzapfen ab Gewinde M3 bzw. Durchmesser 2,6mm
  •  Kegelschmiernippel nach DIN 71412 mit Gewinde oder Einschlagzapfen ab Gewinde M3
  •  Kugelschmiernippel nach DIN 3402 mit Gewinde oder Einschlagzapfen ab Gewinde M3
  •  Kugeldrucköler / Einschlag Kugel-Öler nach DIN 3410
  •  Kugel-Schnäpper zum Einschlagen
  •  Ventil-Nippel / Entlüftungsventil mit Gewinde
  •  360° schwenkbare Schmiernippel
  •  In den Ausführungen: Form A, Form B (45°), Form C (90°),
  •  aus den Materialien Stahl, Messing, Edelstahl und Aluminium.
  •  mit Oberflächenbehandlungen in Zink – Blau passiviert oder Messing vernickelt.


Bitte kontaktieren Sie uns für weitergehende Fragen bzgl. Abmessungen, Toleranzen, Materialien und Oberflächen. Gerne fertigen wir Schmiernippel nach Zeichnung und Kundenwunsch abweichend von der DIN.
Wir freuen uns über Ihre Anfrage.


Unsere patentierten 360° schwenkbaren Schmiernippel können sowohl mit Trichterschmiernippel als auch mit Kegelschmiernippel angefertigt werden.
Der Einsatz dieser schwenkbaren Schmiernippel erlaubt unseren Kunden höhere Freiheitsgrade bei der Konstruktion Ihrer Bauteile, weil der Kopf des Schmiernippels bei der Montage in jede gewünschte Abschmierposition gedreht werden kann.

Für unsere kleinen Trichterschmiernippel empfehlen wir die Verwendung einer Stoßfettpresse mit Spitzmundstück.

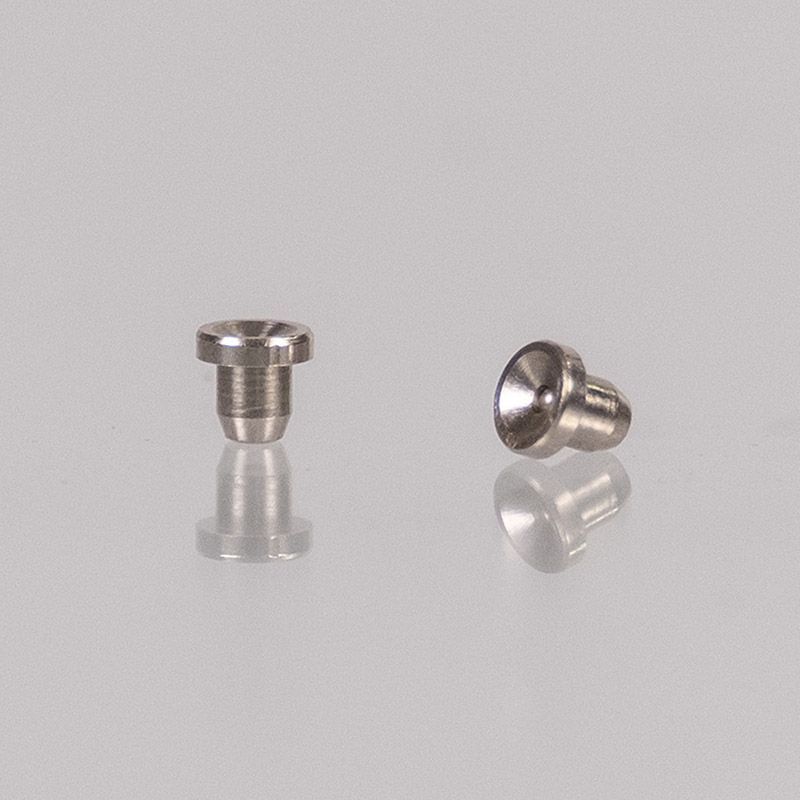

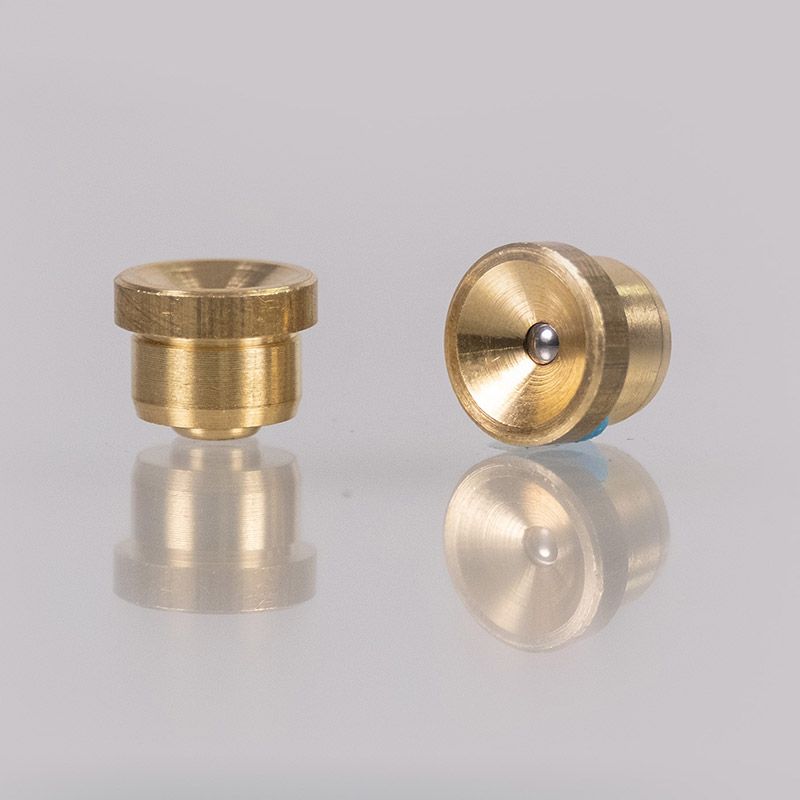

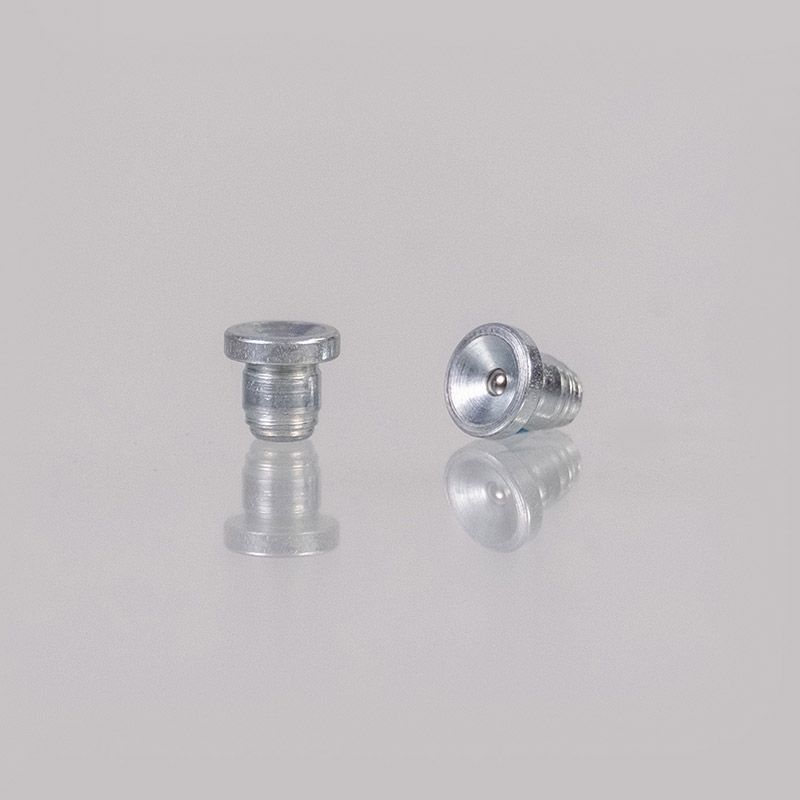

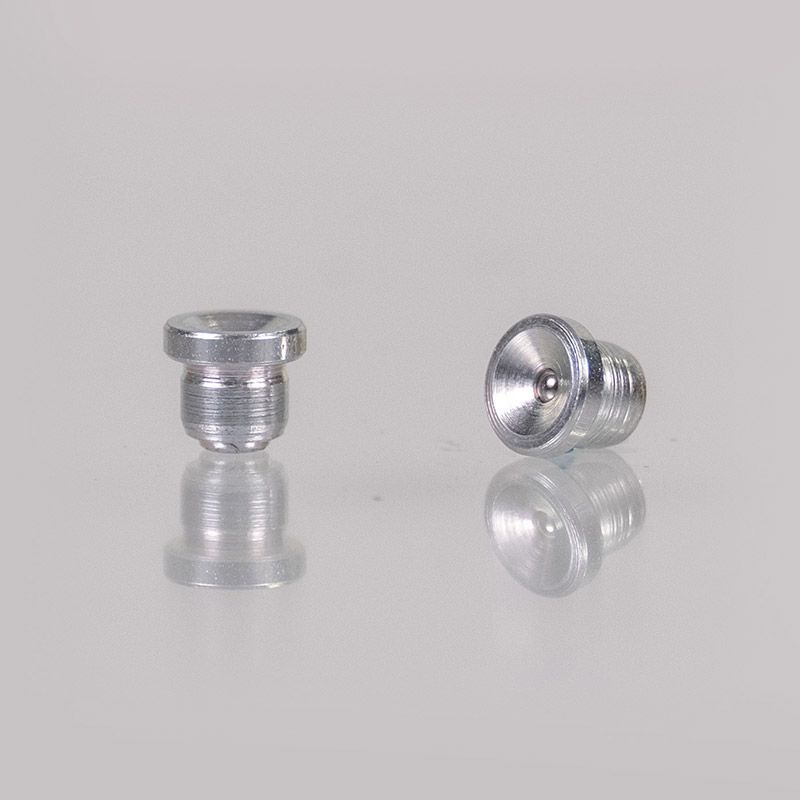

Trichterschmiernippel mit Einschlagzapfen nach DIN 3405

Von D1 A 2,6/4 bis D1 A 8/10

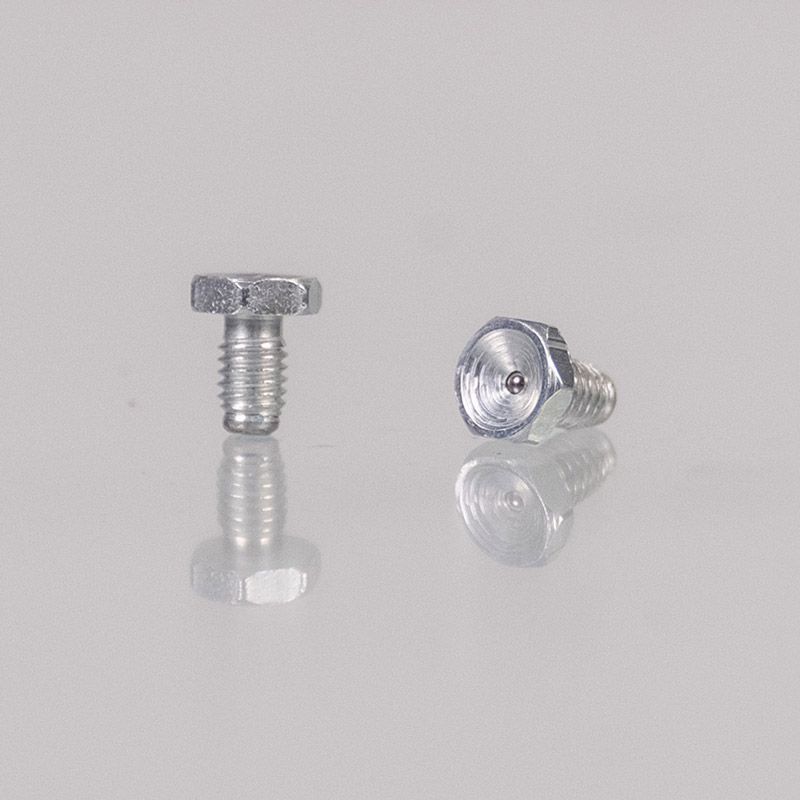

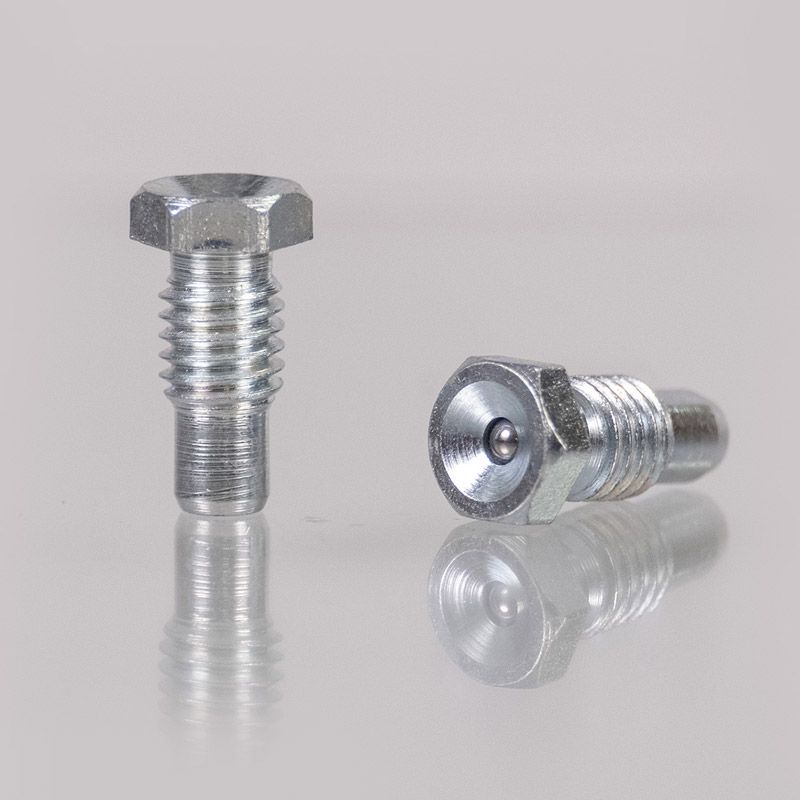

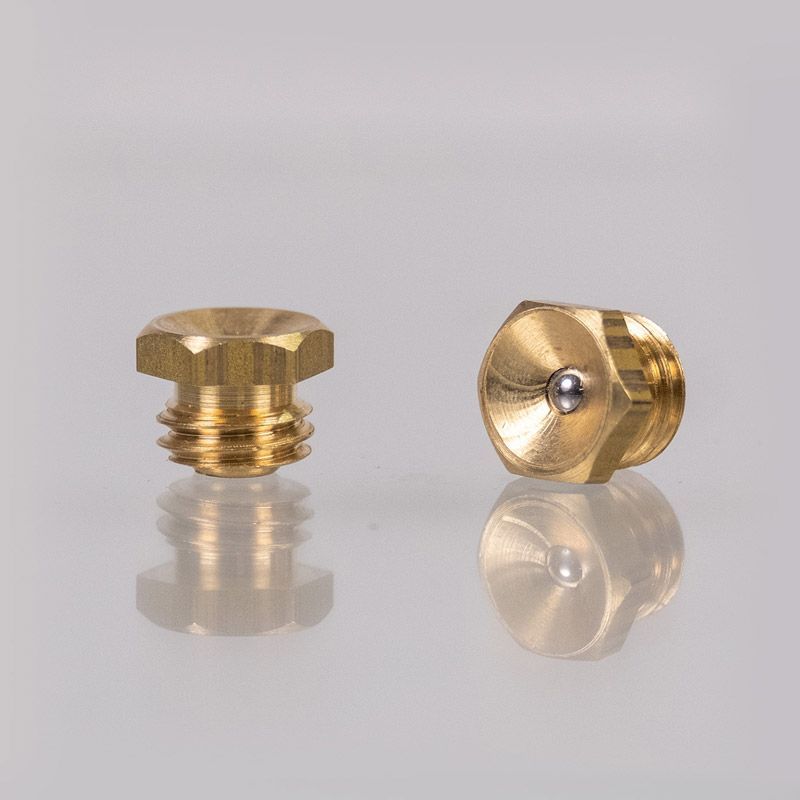

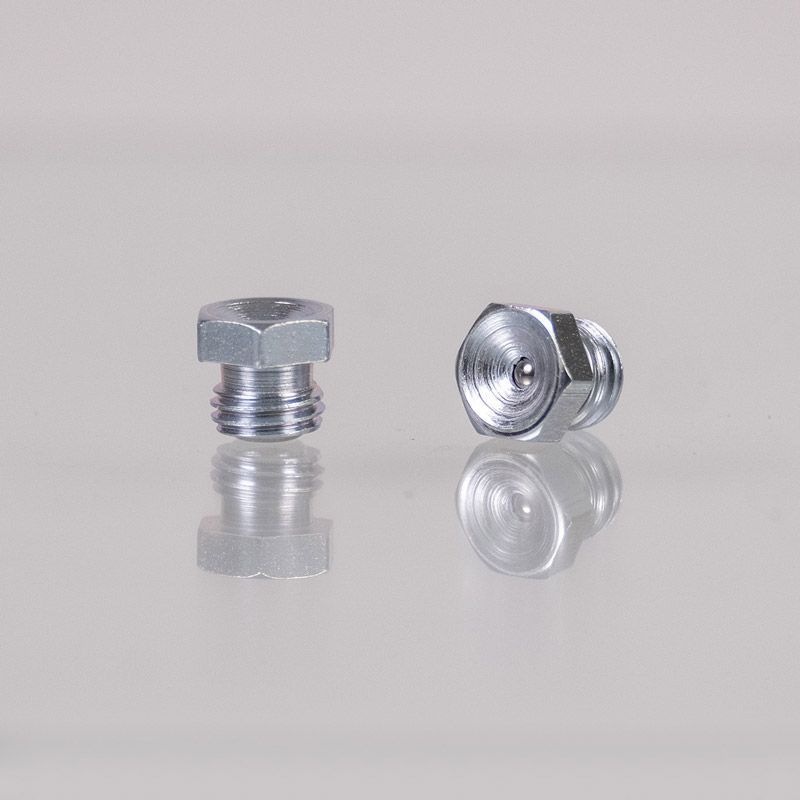

Trichterschmiernippel mit Gewinde nach DIN 3405

Form A von D1 M3 bis D1 M10

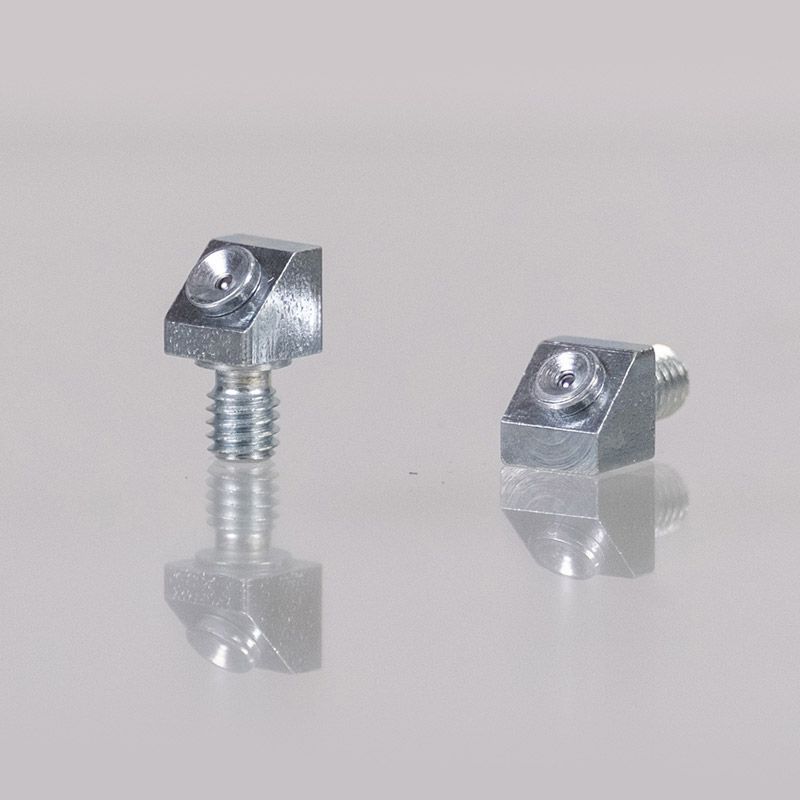

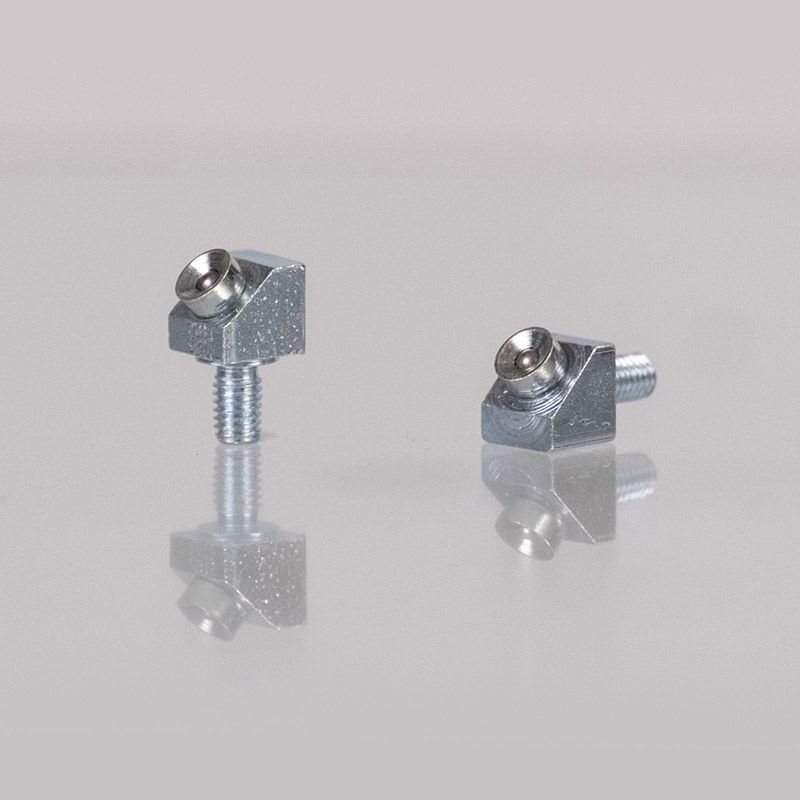

Form B (45°) von D2 M3 bis D2 M4 sowie Form C (90°) von D3 M3 bis D3 M4

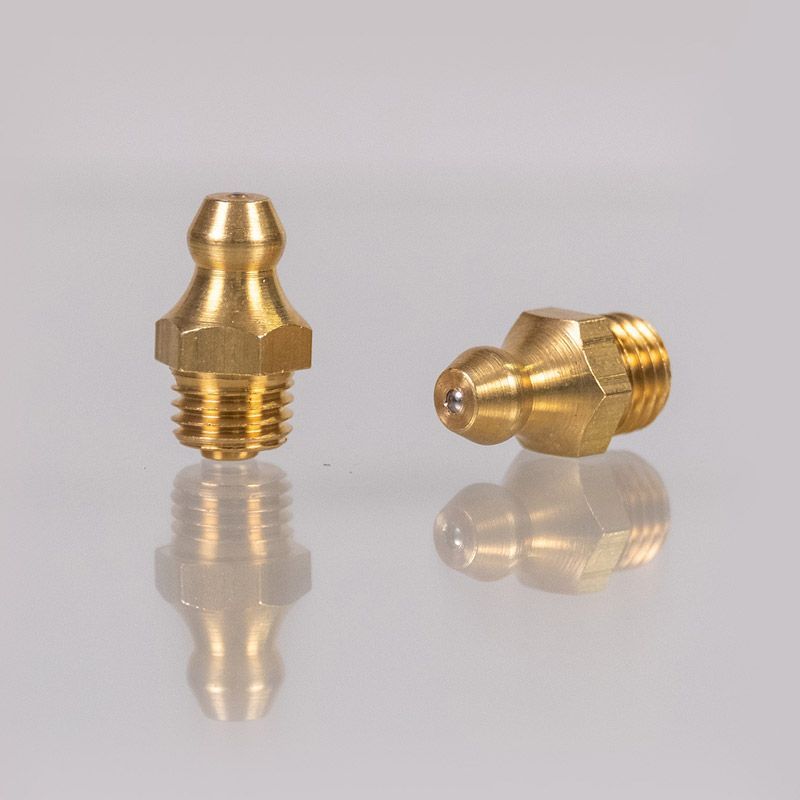

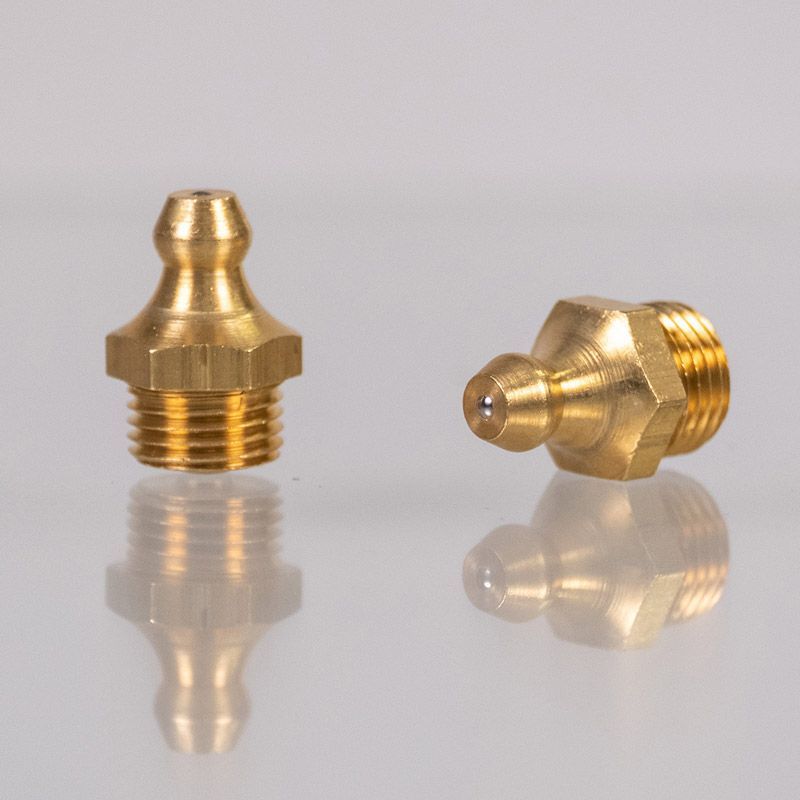

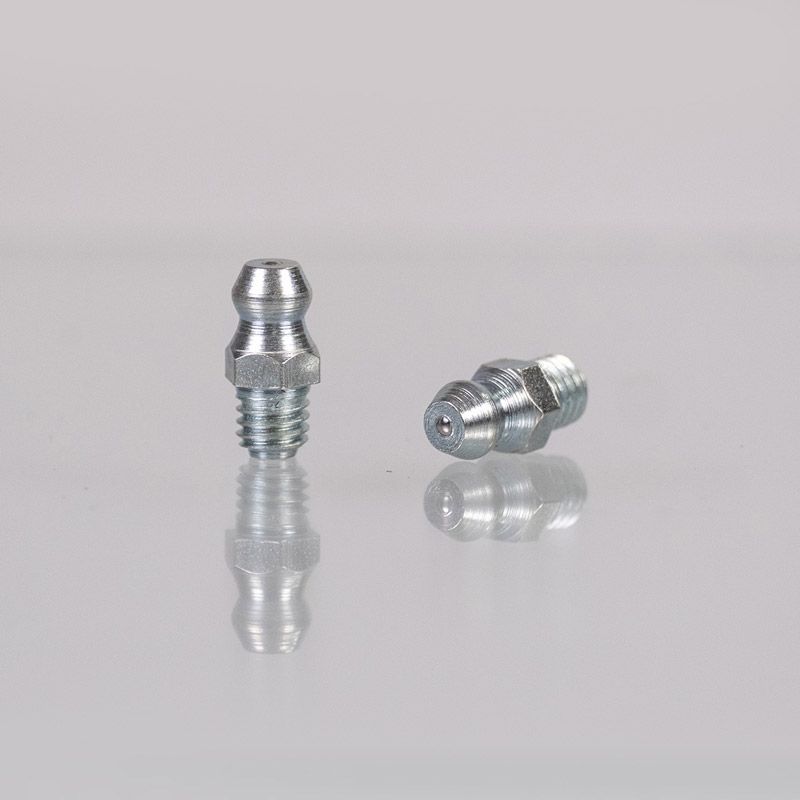

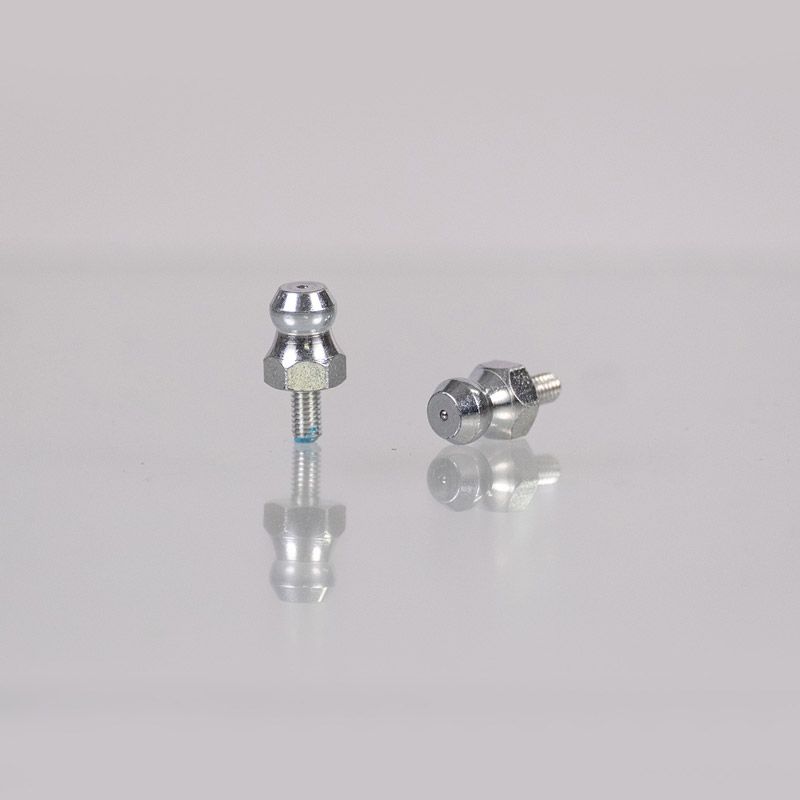

Kegel Schmiernippel nach DIN 71412

Form A von H1 M3 bis H1 M10

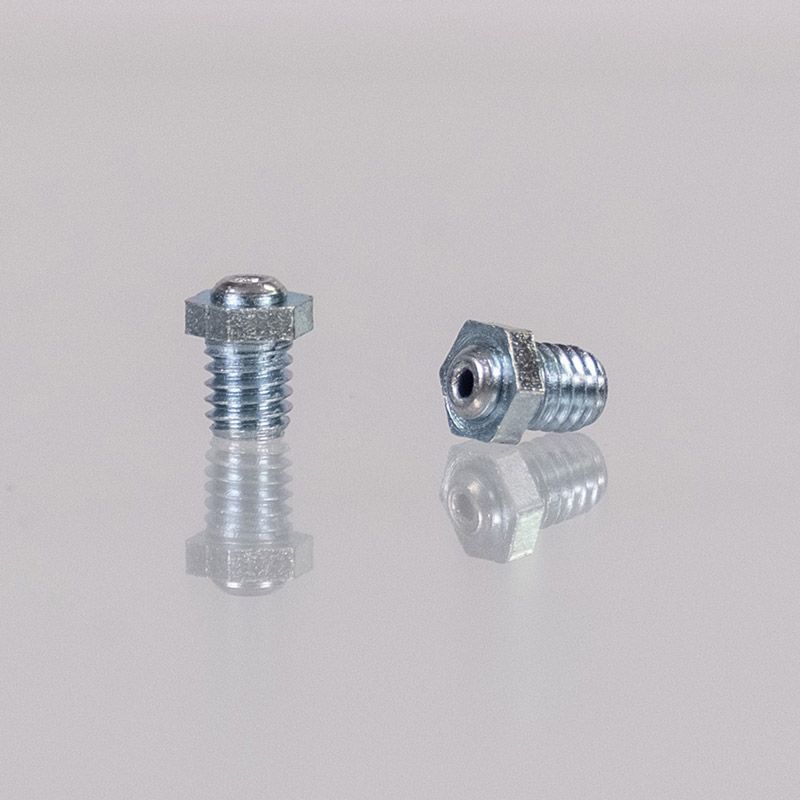

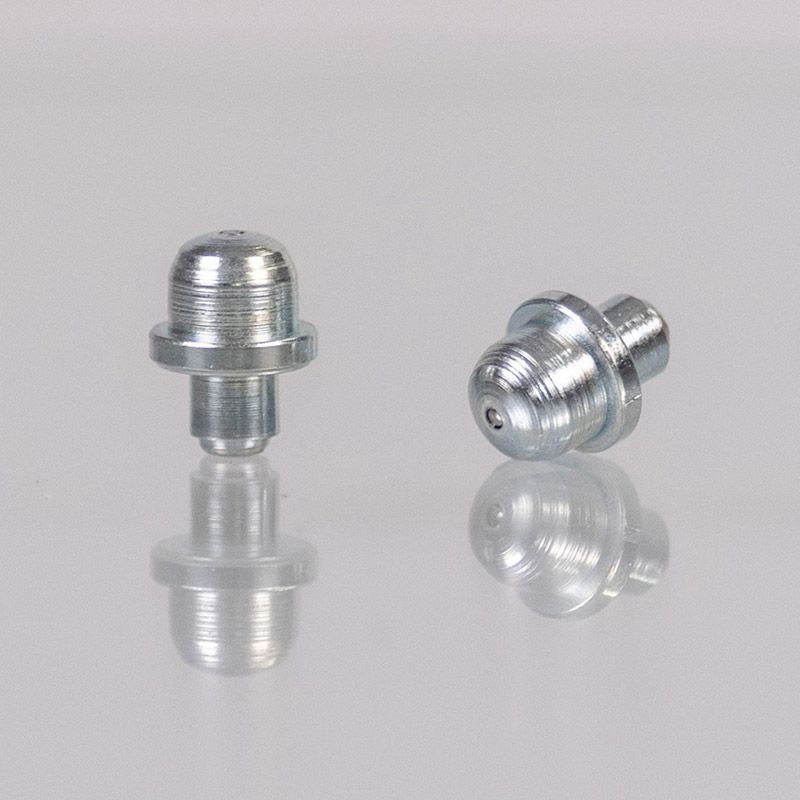

Kugel Schmiernippel nach DIN 3402

Mit Gewinde Von K1 M3 bis K1 M6

Mit Einschlagzapfen K1 A4 bis K1 A6

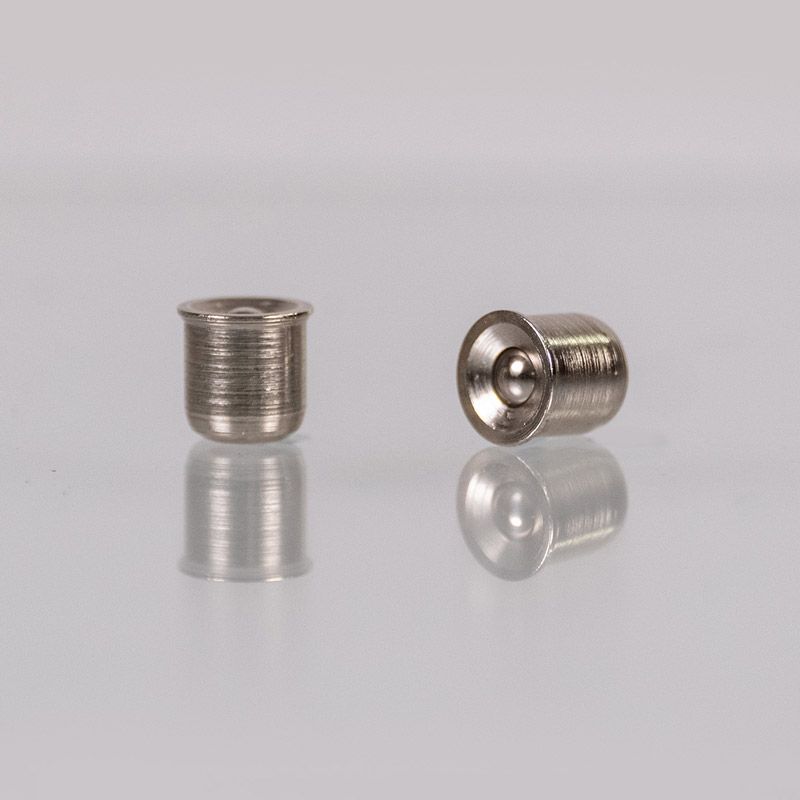

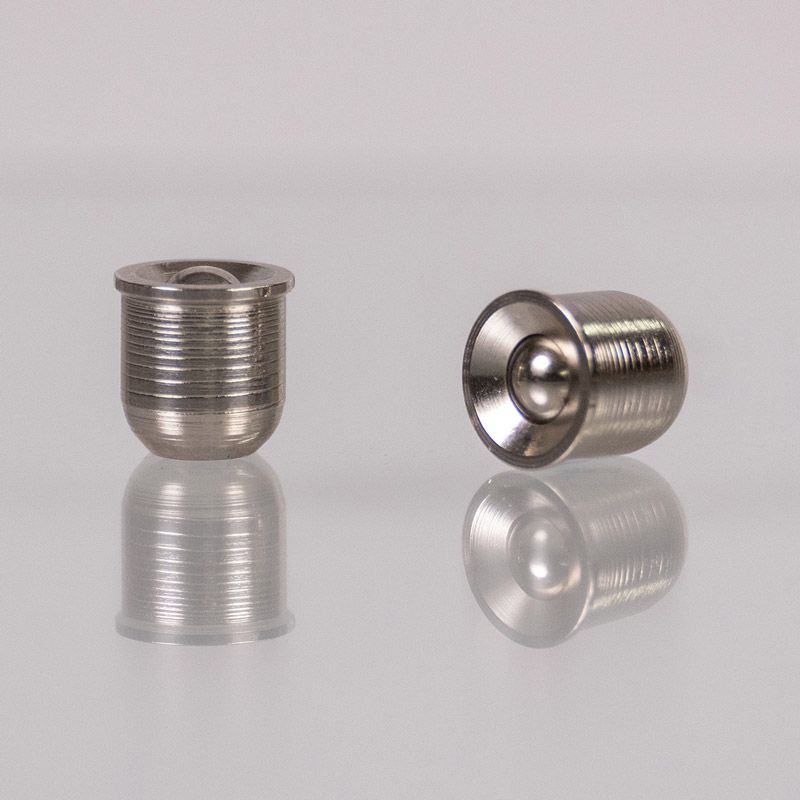

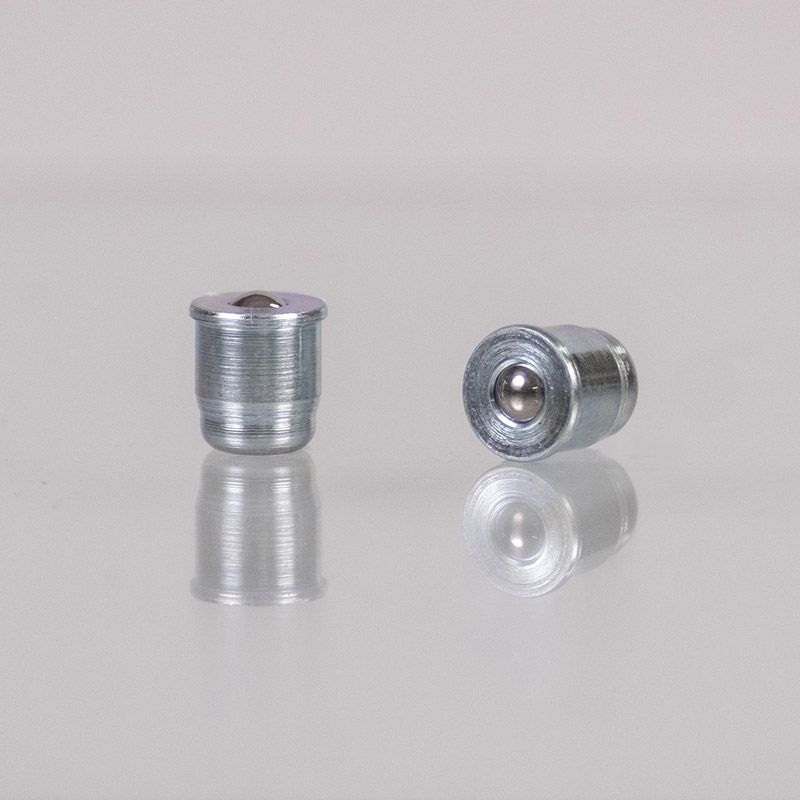

Einschlag-Kugel-Öler / Kugeldrucköler nach DIN 3410

Model 532 von Durchmesser 4mm bis 11mm

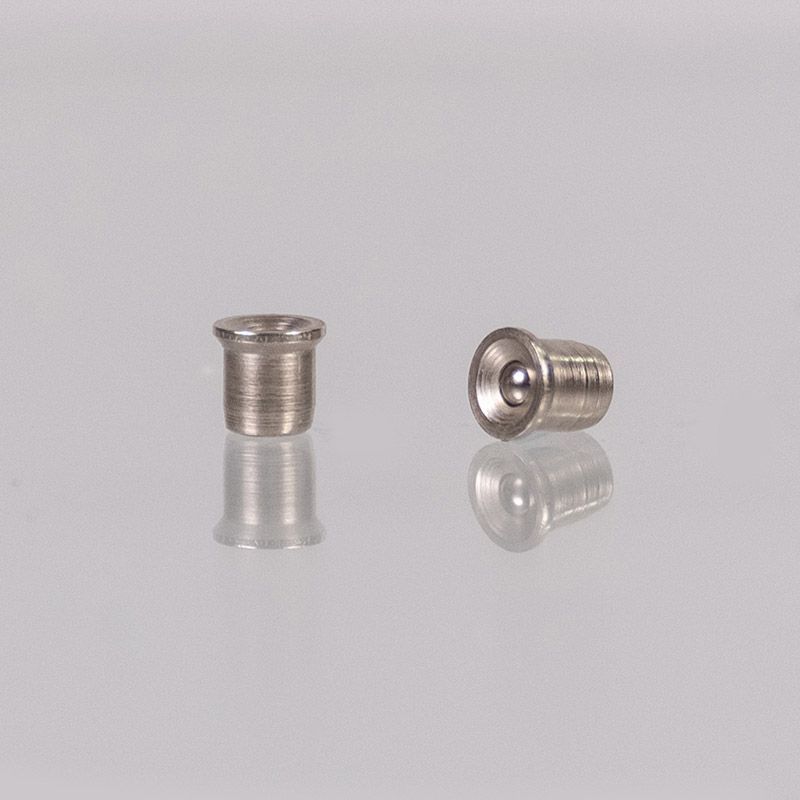

Kugel-Schnäpper mit Einschlagzapfen

Von Durchmesser 6mm bis 8mm

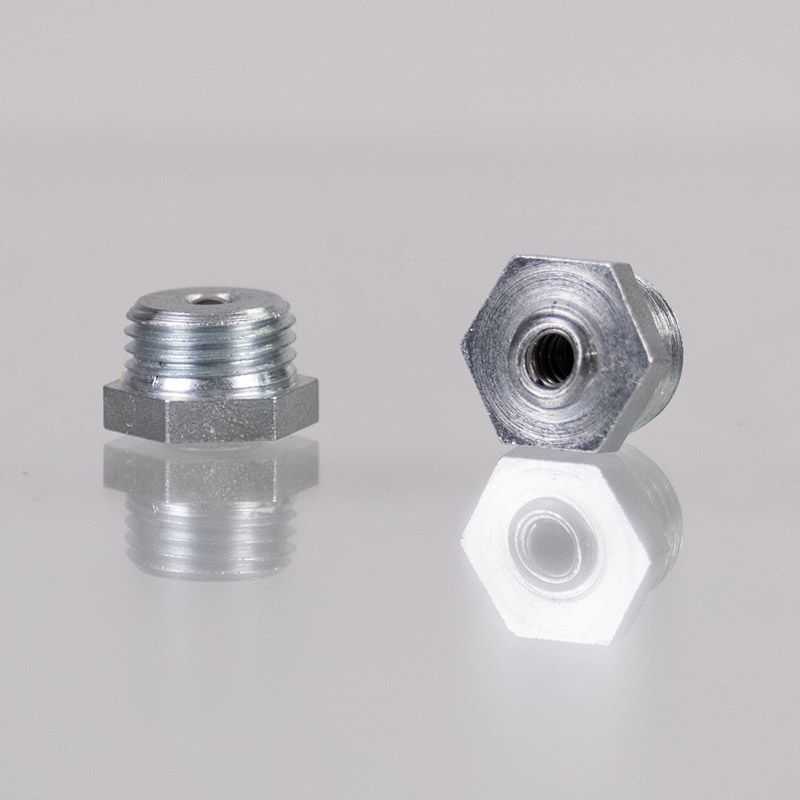

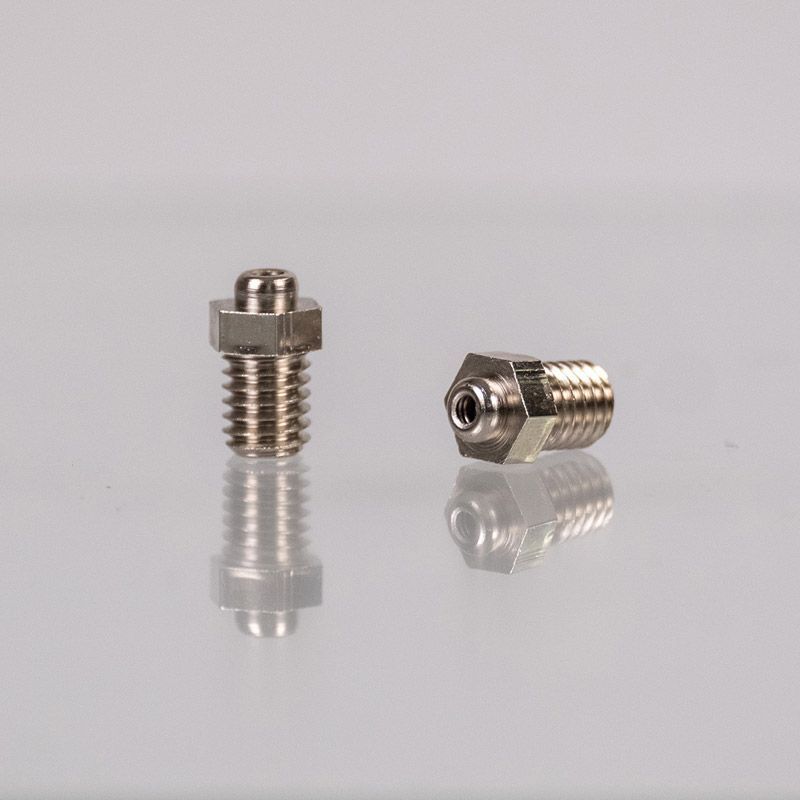

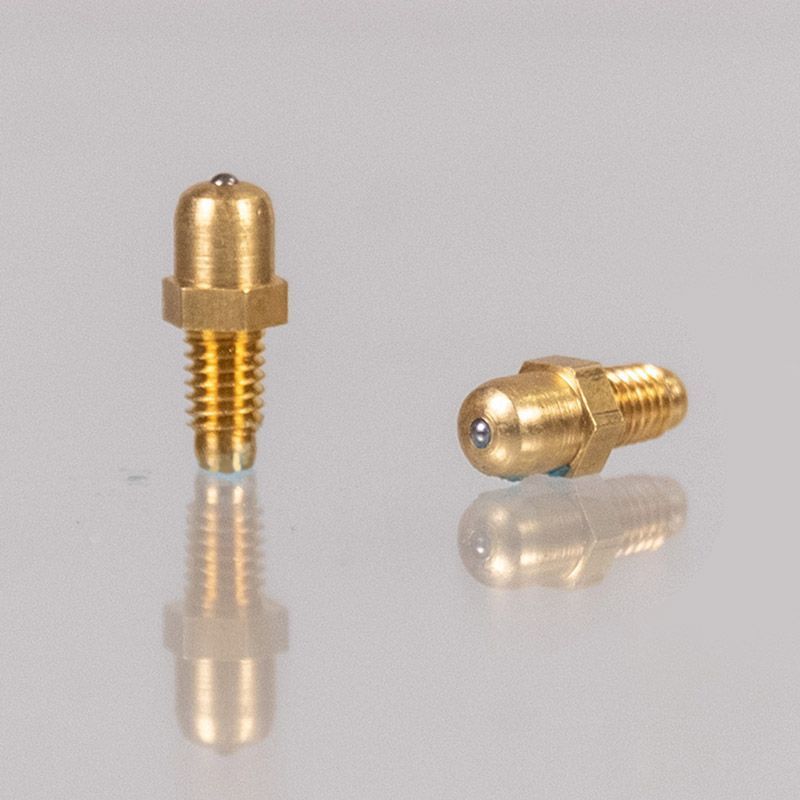

Ventil-Nippel (Entlüftungsventil) mit Gewinde

Vom M4 bis M10

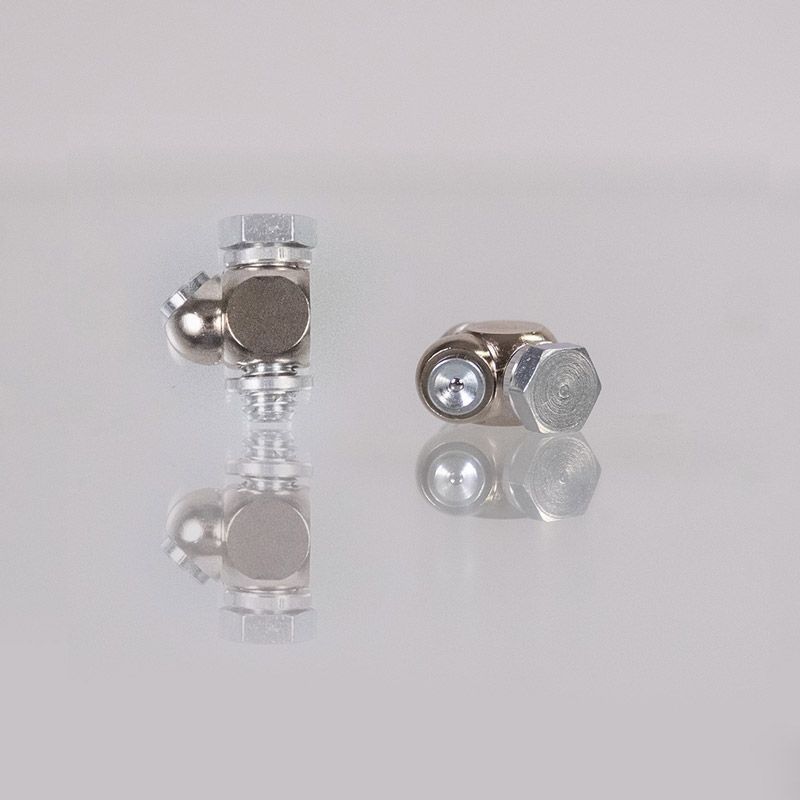

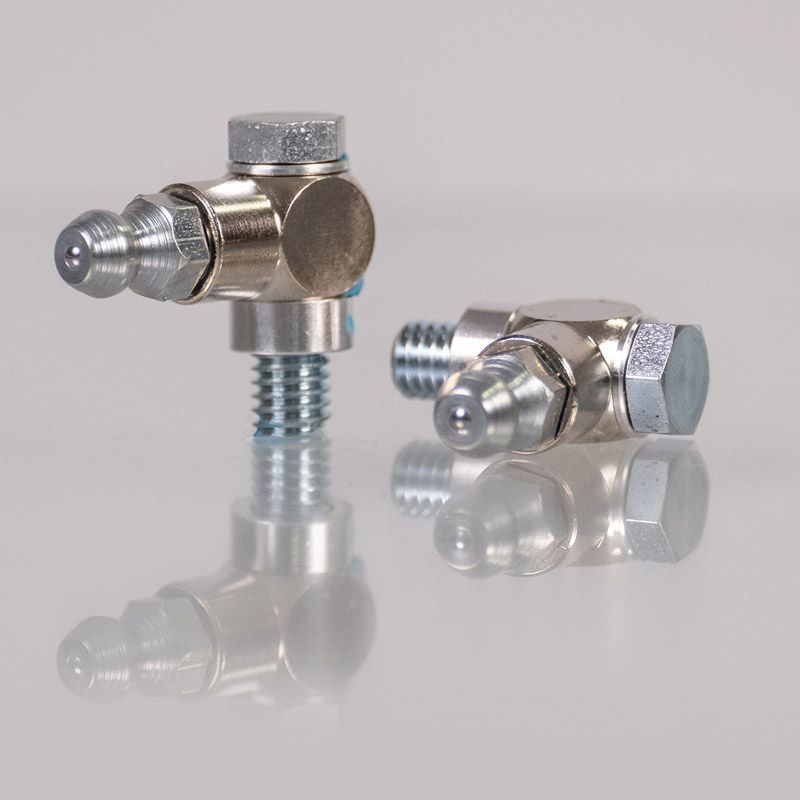

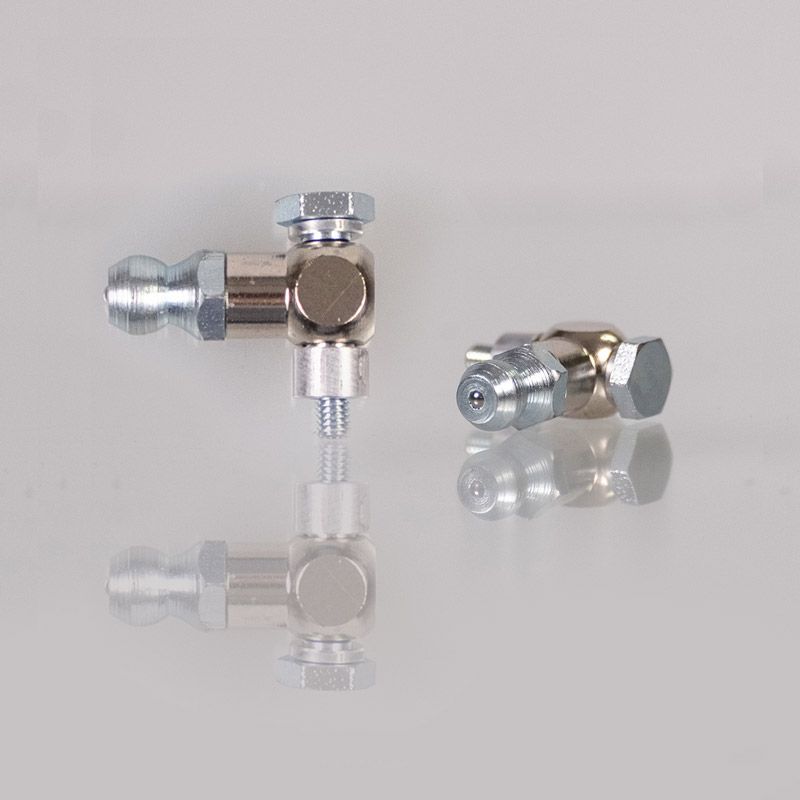

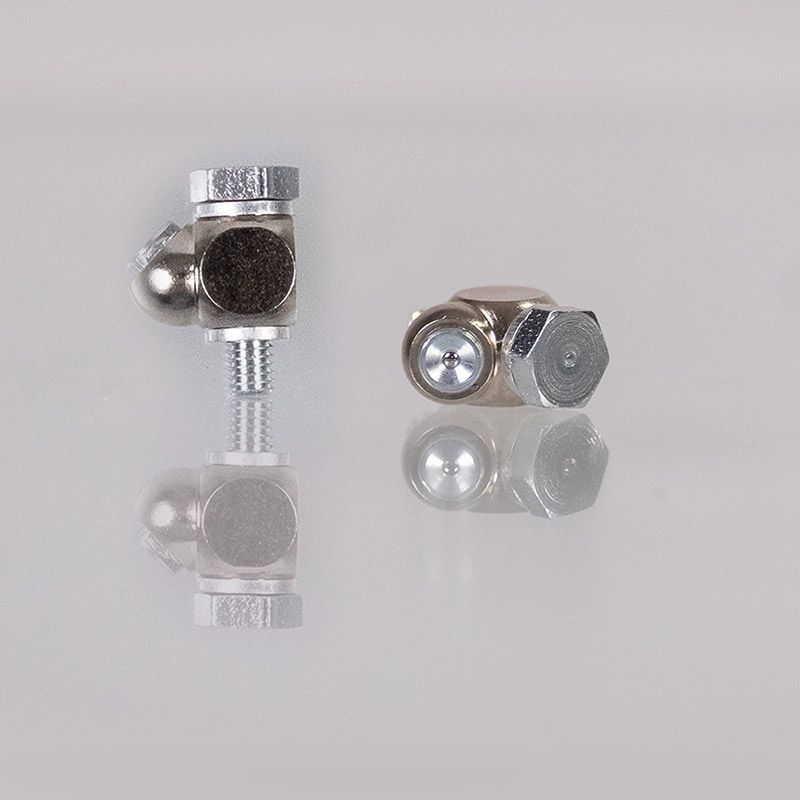

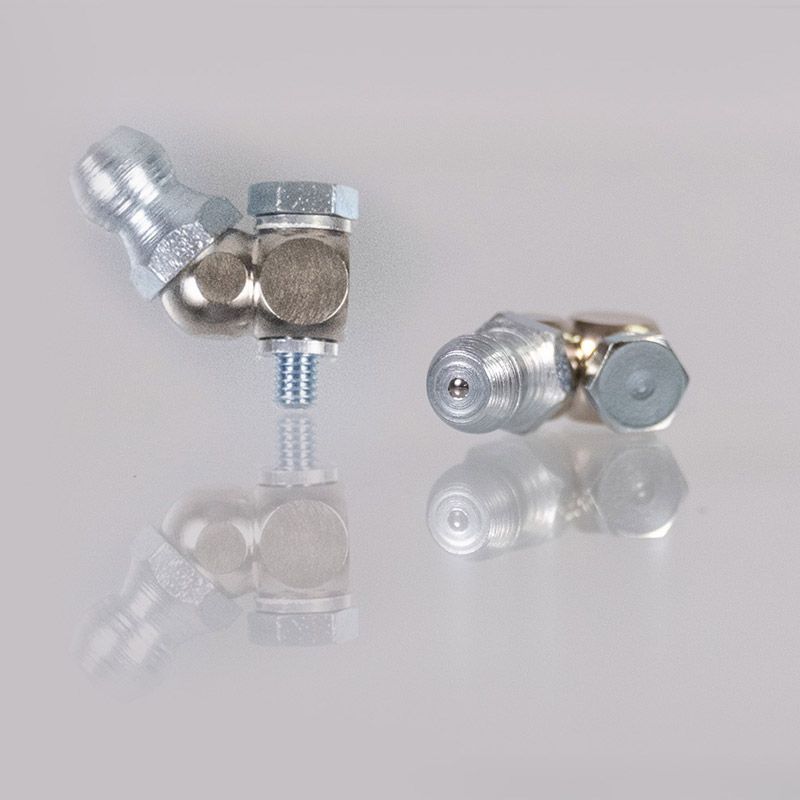

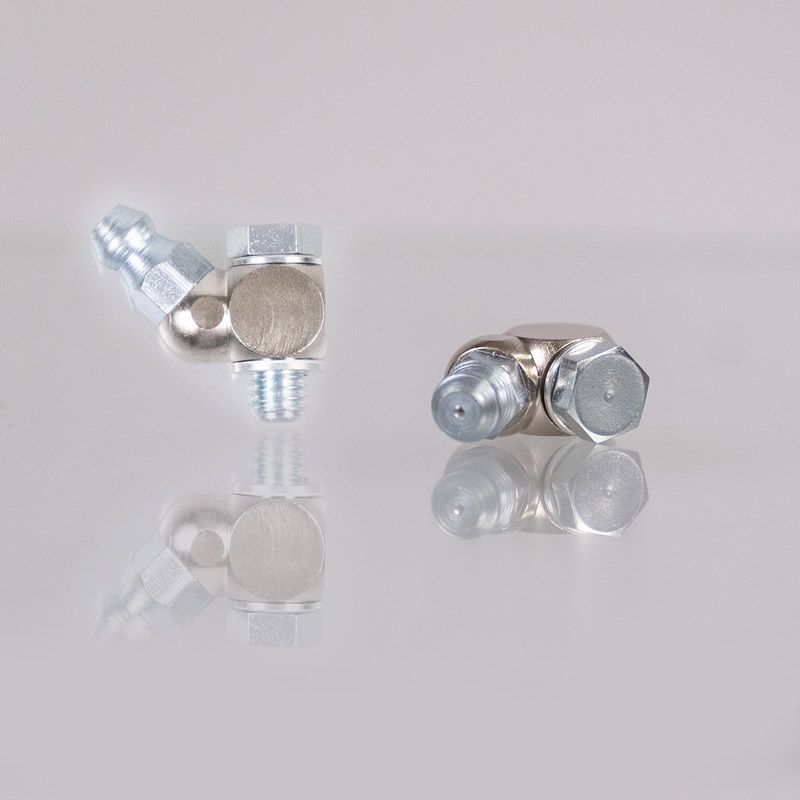

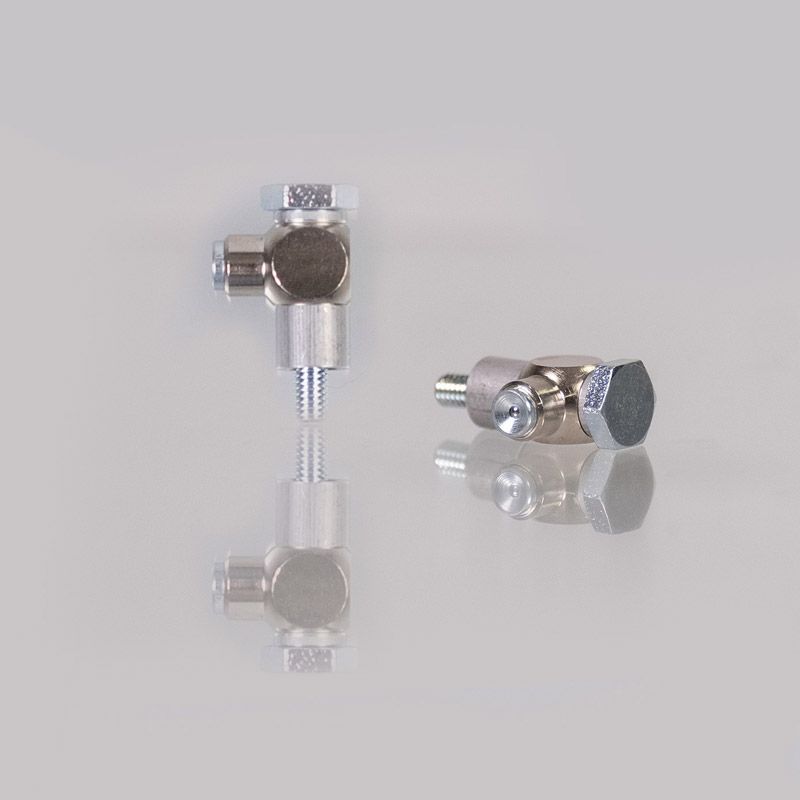

360° schwenkbare Schmiernippel patentiert

Mit Kegelschmiernippel Form B (45°) von H2 M3 bis H2 M10

Mit Kegelschmiernippel Form C (90°) von H3 M3 bis H3 M10

Mit Trichterschmiernippel Form B (45°) von D2 M3 bis D2 M6

Mit Trichterschmiernippel Form C (90°) von D3 M3 bis D3 M10


Huck lubrication nipples – quality made in Germany

Since 1964 the company Huck manufactures lubrication nipples for German and international groups and medium-sized companies in the engineering and roller bearings industries and for many distributors of lubrication systems and fastener technology.

Our product range encompasses

  • Funnel-type lubrication nipples according to DIN 3405 with thread or hammer tap from thread M3 or diameter 2.6mm
  • Conical lubrication nipples according to DIN 71412 with thread or hammer tap from thread M3
  • Ball-type lubrication nipples according to DIN 3402 with thread or hammer tap from thread M3
  • Ball point oilers / impaction ball oilers according to DIN 3410
  • Ball snapper for impaction
  • Valve nipple / breather valve with thread
  • 360° swivelling lubrication nipples



Of the models:

  • Shape A, shape B (45°), shape C (90°),
    Made of the materials
  • Steel, brass, stainless steel, and aluminium.
    With surface treatment in
  • Zinc – blue passivated or brass nickel-plated.


Please contact us should you have any questions regarding dimensions, tolerances, materials, or surfaces. We are happy to manufacture lubrication nipples according to your drawing and customer request deviating from the DIN.

We are looking forward to your request

Our patented 360° swivelling lubrication nipples can be manufactured both with funnel-type lubrication nipples and with conical lubrication nipples.

The application of such swivelling lubrication nipples allows our clients higher degrees of freedom when designing their components because the head of the lubrication nipple can be swivelled to the desired lubrication position during assembly.

For our small funnel-type lubrication nipples we recommend the use of a push grease gun with pointed nosepiece.

The headlines of the individual products are displayed on the web page.
Please translate these as well

Funnel-type lubrication nipples acc. to DIN 3405 with hammer tap

From D1 A 2,6/4 to D1 A 8/10

Funnel-type lubrication nipples acc. to DIN 3405 with thread

Form A from D1 M3 to D1 M10

Form B (45°) von D2 M3 bis D2 M4 sowie Form C (90°) von D3 M3 bis D3 M4

Conical lubrication nipples according to DIN 71412

Form A von H1 M3 bis H1 M10

Ball-type lubrication nipples according to DIN 3402

With thread form K1 M3 to K1 M6

With hammer tap K1 A4 to K1 A6

Ball point oilers / impaction ball oilers according to DIN 3410

Model 532 from diameter 4mm to 11mm

Ball snapper for impaction

From diameter 6mm to 8mm

Valve nipple / breather valve with thread

From M4 to M10

360° swivelling lubrication nipples

With Conical lubrication Form B (45°) from H2 M3 to H2 M10

With Conical lubrication Form C (90°) from H3 M3 to H3 M10

With Funnel-type Form B (45°) from D2 M3 to D2 M6

With Funnel-type Form C (90°) from D3 M3 to D3 M10
